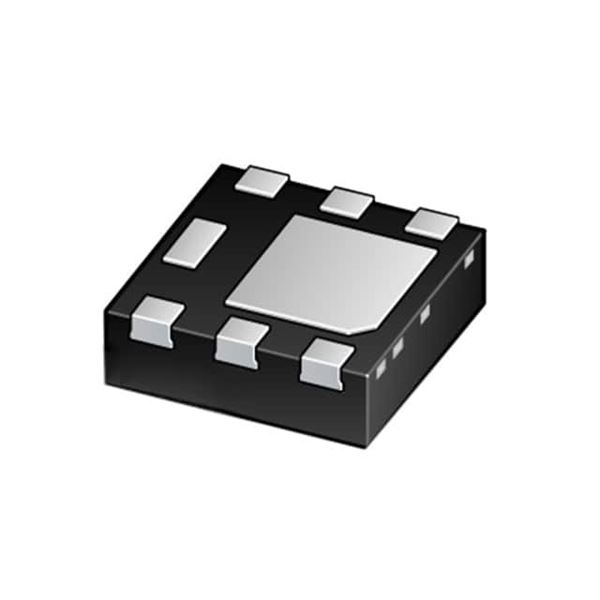

BUK6D43-40PX

SKU: 129154

Manufacturer: Nexperia

Trans MOSFET P-CH 40V 14A Automotive 6-Pin DFN-MD EP T/R

1460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single Quint Drain Dual Source
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	20
Maximum Gate Threshold Voltage (V)	2.7
Maximum Continuous Drain Current (A)	14
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	43@10V
Typical Gate Charge @ Vgs (nC)	24@10V
Typical Gate Charge @ 10V (nC)	24
Typical Input Capacitance @ Vds (pF)	1260@20V
Maximum Power Dissipation (mW)	2300
Typical Fall Time (ns)	14
Typical Rise Time (ns)	23
Typical Turn-Off Delay Time (ns)	35
Typical Turn-On Delay Time (ns)	9
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	DFN-MD EP
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.61(Max)
Package Length	2.1(Max)
Package Width	2.1(Max)
