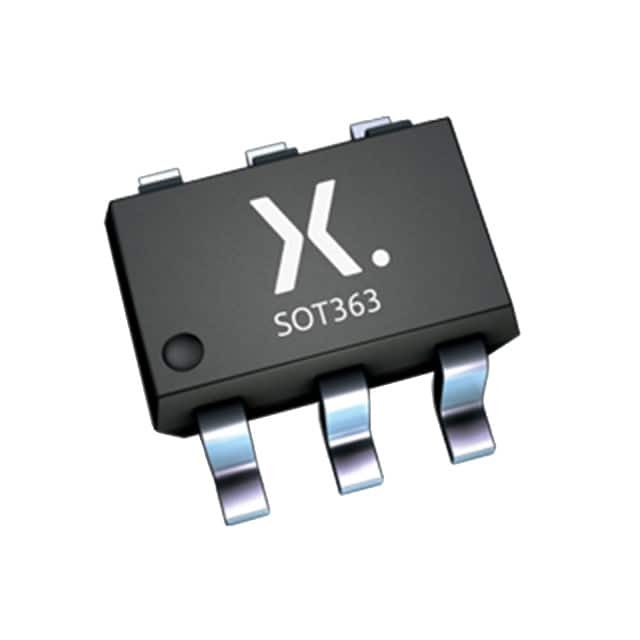

BSS138PS

SKU: 10942

Manufacturer: Nexperia

Trans MOSFET N-CH 60V 0.32A Automotive 6-Pin TSSOP

651270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Product Category	Small Signal
Configuration	Dual
Process Technology	TMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	1.5
Maximum Continuous Drain Current (A)	0.32
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	1600@10V
Typical Gate Charge @ Vgs (nC)	0.72@4.5V
Typical Input Capacitance @ Vds (pF)	38@10V
Maximum Power Dissipation (mW)	420
Typical Fall Time (ns)	4
Typical Rise Time (ns)	3
Typical Turn-Off Delay Time (ns)	9
Typical Turn-On Delay Time (ns)	2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TSSOP
Pin Count	6
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.2(Max)
Package Width	1.35(Max)
