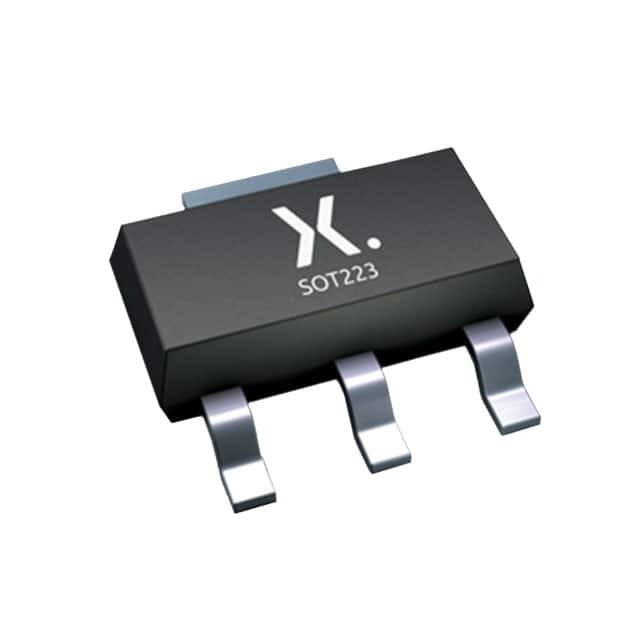

BCP56-10TX

SKU: 157565

Manufacturer: Nexperia

Trans GP BJT NPN 80V 1A 1800mW Automotive 4-Pin(3+Tab) SC-73 T/R

1180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Type	NPN
Product Category	Bipolar Power
Configuration	Single Dual Collector
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	100
Collector-Emitter Voltage-Max (V)	80
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	0.5@50mA@500mA
Maximum DC Collector Current (A)	1
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	63@150mA@2V
Maximum Power Dissipation (mW)	1800
Maximum Transition Frequency (MHz)	155(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Pin Count	4
Original Package	SC-73
Terminal Form	Surface Mount
Package Height	1.7(Max)
Package Length	6.7(Max)
Package Width	3.7(Max)
PCB changed	3
