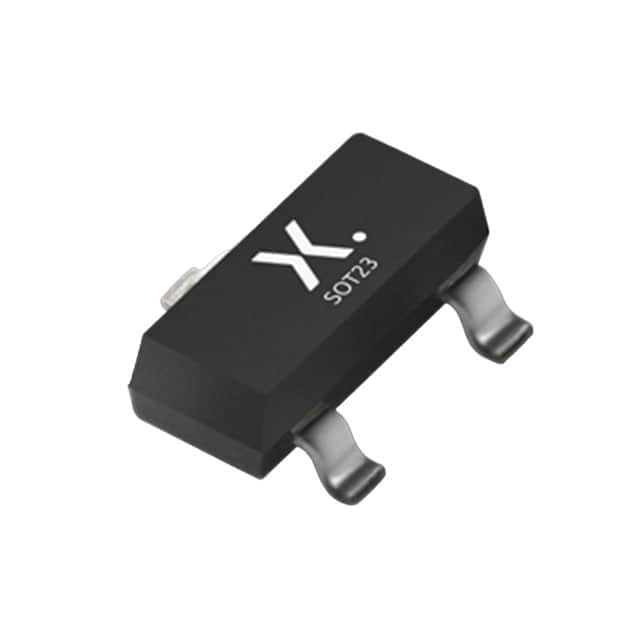

BC807-25LR

SKU: 107847

Manufacturer: Nexperia

Trans GP BJT PNP 45V 0.5A 345mW Automotive 3-Pin SOT-23 T/R

1980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Type	PNP
Product Category	Bipolar Small Signal
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	50
Collector-Emitter Voltage-Max (V)	45
Maximum Emitter Base Voltage (V)	5
Operating Junction Temperature (°C)	150
Maximum Collector-Emitter Saturation Voltage (V)	0.7@50mA@500mA
Maximum DC Collector Current (A)	0.5
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	160@100mA@1V
Maximum Power Dissipation (mW)	345
Maximum Transition Frequency (MHz)	80(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	3(Max)
Package Width	1.4(Max)
PCB changed	3
