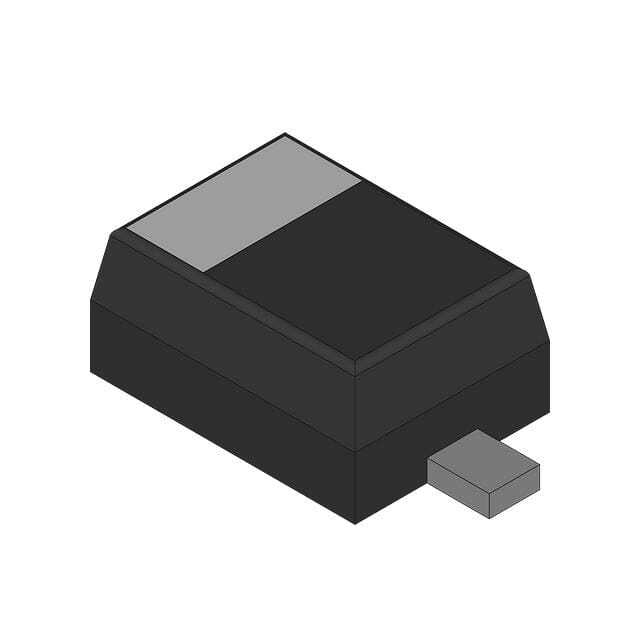

BAS16GWJ

SKU: 58526

Manufacturer: Nexperia

Rectifier Diode Switching 100V 0.215A 4ns Automotive 2-Pin SOD-123 T/R

490200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
SVHC	Yes
Automotive	Yes
PPAP	Yes
Type	Switching Diode
Maximum DC Reverse Voltage (V)	100
Configuration	Single
Peak Reverse Repetitive Voltage (V)	100
Maximum Continuous Forward Current (A)	0.215
Peak Non-Repetitive Surge Current (A)	4
Peak Forward Voltage (V)	1.25@0.15A
Peak Reverse Current (uA)	0.5@80V
Maximum Diode Capacitance (pF)	1.5
Maximum Power Dissipation (mW)	600
Peak Reverse Recovery Time (ns)	4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	SOD-123
Pin Count	2
Terminal Form	Surface Mount
Package Height	1.2(Max)
Package Length	2.8(Max)
Package Width	1.7(Max)
