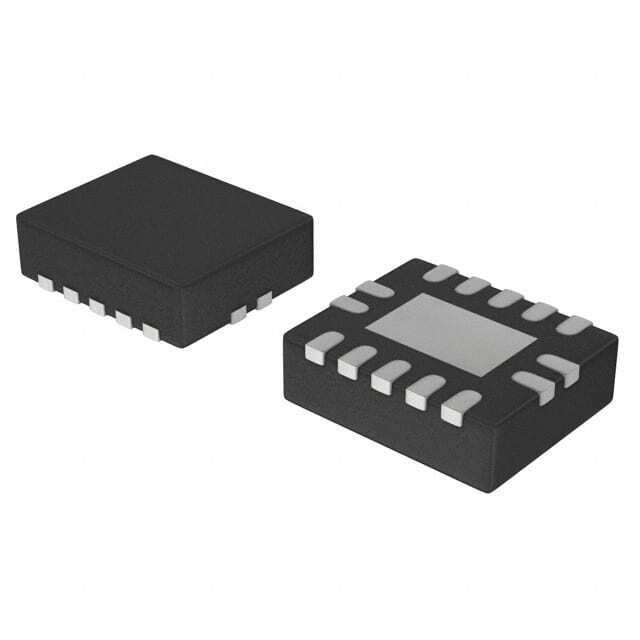

74LVC4066BQ-Q100X

SKU: 143117

Manufacturer: Nexperia

Analog Switch Quad SPST Automotive 14-Pin DHVQFN EP T/R

1050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Type	Analog Switch
Configuration	Quad SPST
Switch Architecture	SPST
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Propagation Delay Bus to Bus (ns)	0.4(Typ)@2.7V
Maximum Turn-On Time (ns)	5.3(Typ)@1.95V
Maximum Turn-Off Time (ns)	4.2(Typ)@1.95V
Maximum Frequency (25°C) @ Vcc (MHz)	170(Typ)@1.65V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	1.65
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Typical Supply Current (mA)	0.0001@5.5V
Maximum Supply Current (mA)	0.04@5.5V@-40C to 125C
Maximum Low Level Output Current (mA)	50
Maximum High Level Output Current (mA)	50
Maximum On Resistance (Ohm)	195@1.95V
Maximum On Resistance Range (Ohm)	150 to 250
Power Supply Type	Single
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	DHVQFN EP
Pin Count	14
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3
Package Width	2.5
