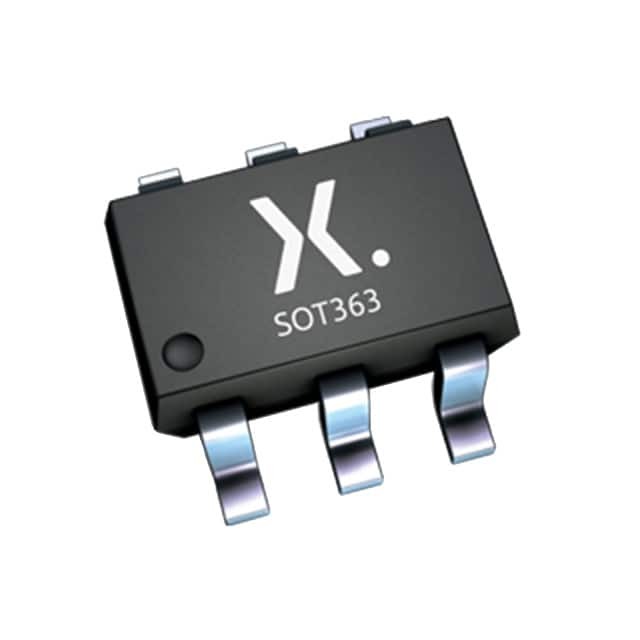

74LVC2G04GW-Q100H

SKU: 58268

Manufacturer: Nexperia

Inverter 2-Element CMOS Automotive 6-Pin TSSOP T/R

2830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Logic Family	LVC
Logic Function	Inverter
Number of Elements per pcs	2
Maximum Propagation Delay Time @ Maximum CL (ns)	2.7(Typ)@3.3V
Absolute Propagation Delay Time (ns)	9.5
Process Technology	CMOS
Maximum Low Level Output Current (mA)	32
Maximum High Level Output Current (mA)	-32
Operating Supply Voltage-Min (V)	1.65
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Typical Quiescent Current (uA)	0.1
Maximum Quiescent Current (uA)	40
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	6
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.2(Max)
Package Width	1.35(Max)
