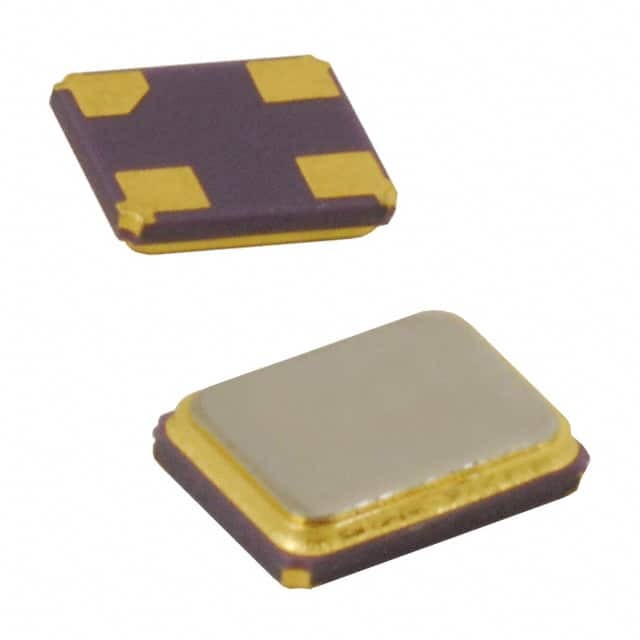

NX2520SA-16MHZ-STD-CSW-5 NDK

NX2520SA-16MHZ-STD-CSW-5

SKU: 105658

Manufacturer: NDK

Crystal 16MHz ±15ppm (Tol) ±25ppm (Stability) 8pF FUND 80Ohm 4-Pin SMD

Download sample

Request Free Samples

54760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Typical Drive Level (uW)	10
Type	Crystal
Standard Frequency (MHz)	16
Frequency Tolerance (ppm)	±15
Frequency Stability (ppm)	±25
Load Capacitance (pF)	8
Series Resistance (Ohm)	80
Mode of Oscillation	Fundamental
Operating Temperature-Min	-40
Operating Temperature-Max	85
Pin Count	4
Terminal Form	Surface Mount
Package Height	0.5
Package Length	2.5
Package Width	2
