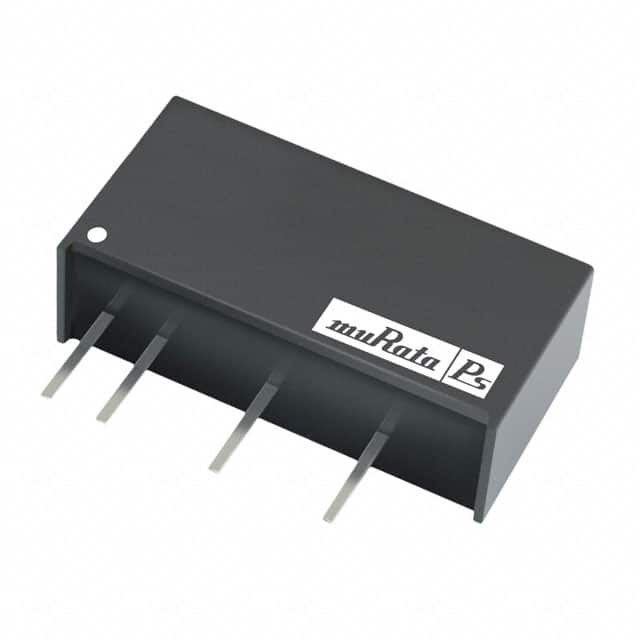

MEJ2S1212SC Murata Power Solutions

MEJ2S1212SC

SKU: 84210

Manufacturer: Murata Power Solutions

Module DC-DC 12VIN 1-OUT 12V 0.167A 2W 4-Pin SIP

Download sample

Request Free Samples

3390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8504.40.95.80
Automotive	No
PPAP	No
Isolation	Isolated
Number of Outputs	1
Minimum Input Voltage (V)	10.8
Typical Input Voltage (V)	12
Maximum Input Voltage (V)	13.2
Output Voltage (V)	12
Output Current (A)	0.167
Output Power (W)	2
Minimum Isolation Voltage	5200VDC
Switching Frequency (kHz)	45(Typ)
Switching Regulator	Yes
Load Regulation	8%
Line Regulation	1.2%/%
Efficiency (%)	80(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Output Type	Fixed
Original Package	SIP
Pin Count	4
Standard Package Method	SIP
Terminal Form	Through Hole
Package Height	12.65(Max)
Package Length	19.65(Max)
Package Width	9.95(Max)
PCB changed	4
