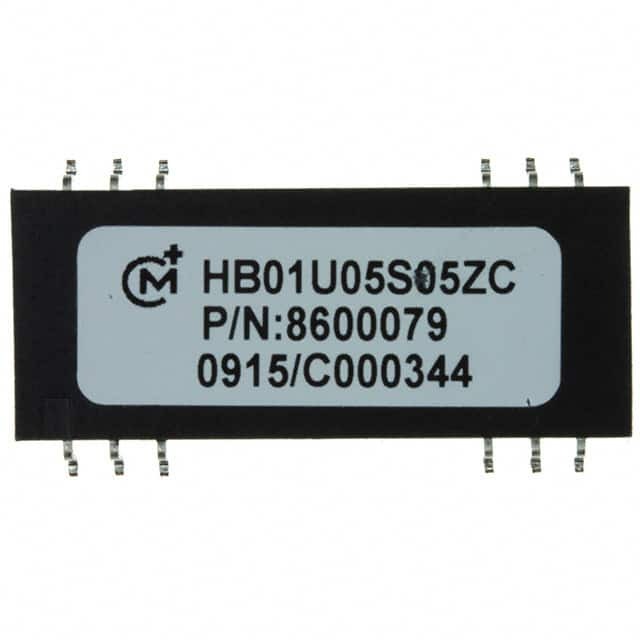

HB01U05S05ZC Murata Power Solutions

HB01U05S05ZC

SKU: 110862

Manufacturer: Murata Power Solutions

Module DC-DC 5VIN 1-OUT 5V 0.2A 1W 13-Pin SMD Module

Download sample

Request Free Samples

6380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Obsolete
Automotive	No
PPAP	No
Isolation	Isolated
Number of Outputs	1
Minimum Input Voltage (V)	4.5
Typical Input Voltage (V)	5
Maximum Input Voltage (V)	5.5
Output Voltage (V)	5
Output Current (A)	0.2
Output Power (W)	1(Typ)
Minimum Isolation Voltage	3535VDC
Input/Output Type	DC/DC
Switching Frequency (kHz)	160(Typ)
Switching Regulator	Yes
Load Regulation	5%(Min)
Line Regulation	1.5%/%Vi(Typ)
Efficiency (%)	68
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	12
Output Type	Fixed
Original Package	SMD Module
Pin Count	13
Standard Package Method	SMD Module
Terminal Form	Surface Mount
Package Height	9.52
Package Length	32.64
Package Width	13.34
PCB changed	13
