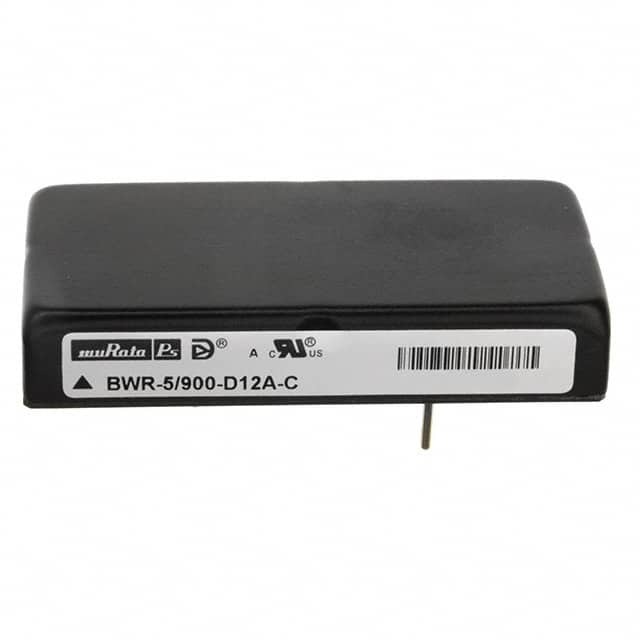

BWR-5/900-D12A-C Murata Power Solutions

BWR-5/900-D12A-C

SKU: 72573

Manufacturer: Murata Power Solutions

Module DC-DC 12VIN 2-OUT 5V/-5V 0.9A/-0.9A 10W 5-Pin Case C-2

Download sample

Request Free Samples

2700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Non-Inverting
Number of Outputs	2
Isolation	Isolated
Minimum Input Voltage (V)	9
Typical Input Voltage (V)	12
Maximum Input Voltage (V)	18
Output Voltage (V)	5
Output Current (A)	0.9
Output Power (W)	10
Minimum Isolation Voltage	1500VDC
Input/Output Type	DC/DC
Switching Frequency (kHz)	150 to 180
Switching Regulator	Yes
Load Regulation	1%
Line Regulation	0.3%
Efficiency (%)	82(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	100
Product Weight (g)	37
Output Type	Fixed
Original Package	Case C-2
Pin Count	5
Standard Package Method	Case C-2
Terminal Form	Through Hole
Package Height	9.53
Package Length	50.8
Package Width	25.4
