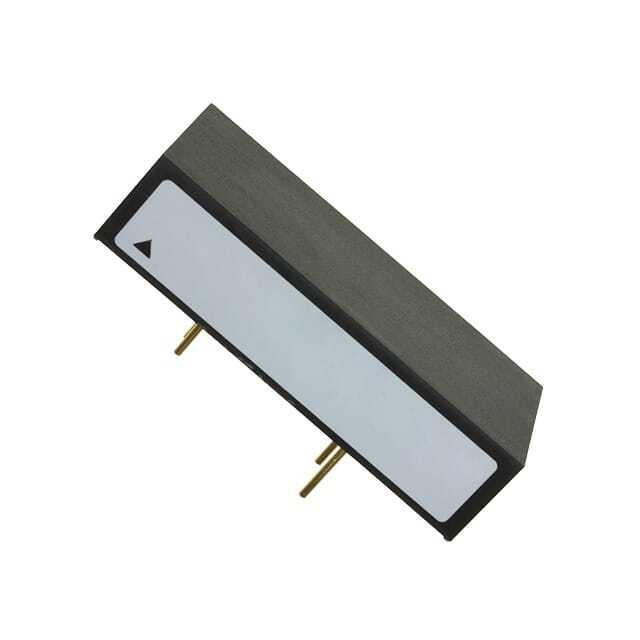

BWR-5/1500-D24A-C Murata Power Solutions

BWR-5/1500-D24A-C

SKU: 86692

Manufacturer: Murata Power Solutions

Module DC-DC 24VIN 2-OUT 5V/-5V 1.5A/-1.5A 17W 6-Pin Case C-14

Download sample

Request Free Samples

2310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	NRND
HTS	8504.40.60.18
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	2
Isolation	Isolated
Minimum Input Voltage (V)	18
Typical Input Voltage (V)	24
Maximum Input Voltage (V)	36
Output Voltage (V)	5
Output Current (A)	1.5
Output Power (W)	17
Minimum Isolation Voltage	1500VDC
Input/Output Type	DC/DC
Typical Standby Current (mA)	5
Switching Frequency (kHz)	330
Switching Regulator	Yes
Load Regulation	0.5%
Line Regulation	0.5%
Efficiency (%)	83(Typ)
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	34
Output Type	Fixed
Original Package	Case C-14
Pin Count	6
Standard Package Method	Module
Terminal Form	Through Hole
Package Height	12.19
Package Length	25.4
Package Width	50.8
