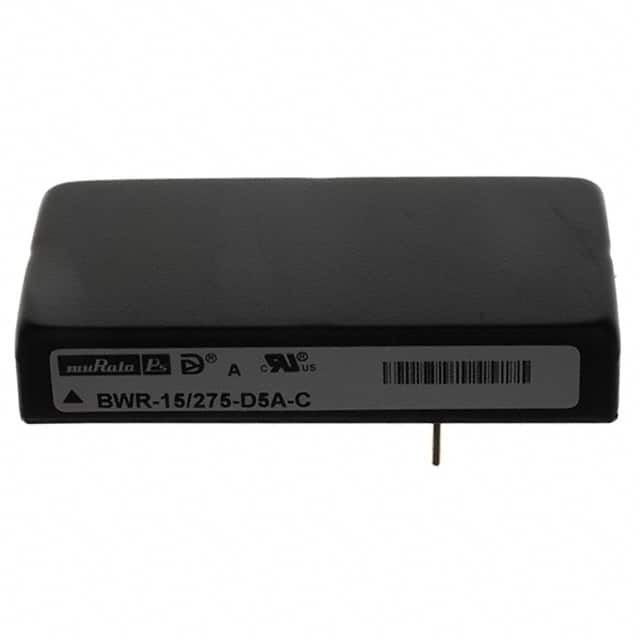

BWR-15/275-D5A-C Murata Power Solutions

BWR-15/275-D5A-C

SKU: 122108

Manufacturer: Murata Power Solutions

Module DC-DC 5VIN 2-OUT 15V/-15V 0.275A/-0.275A 10W 5-Pin Case C-2

Download sample

Request Free Samples

1860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Non-Inverting
Number of Outputs	2
Isolation	Isolated
Minimum Input Voltage (V)	4.7
Typical Input Voltage (V)	5
Maximum Input Voltage (V)	7.25
Output Voltage (V)	15
Output Current (A)	0.275
Output Power (W)	10
Minimum Isolation Voltage	1500VDC
Input/Output Type	DC/DC
Switching Frequency (kHz)	165(Typ)
Switching Regulator	Yes
Load Regulation	1%
Line Regulation	0.3%
Efficiency (%)	79(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	100
Product Weight (g)	37
Output Type	Fixed
Original Package	Case C-2
Pin Count	5
Standard Package Method	Case C-2
Terminal Form	Through Hole
Package Height	9.53
Package Length	50.8
Package Width	25.4
PCB changed	5
