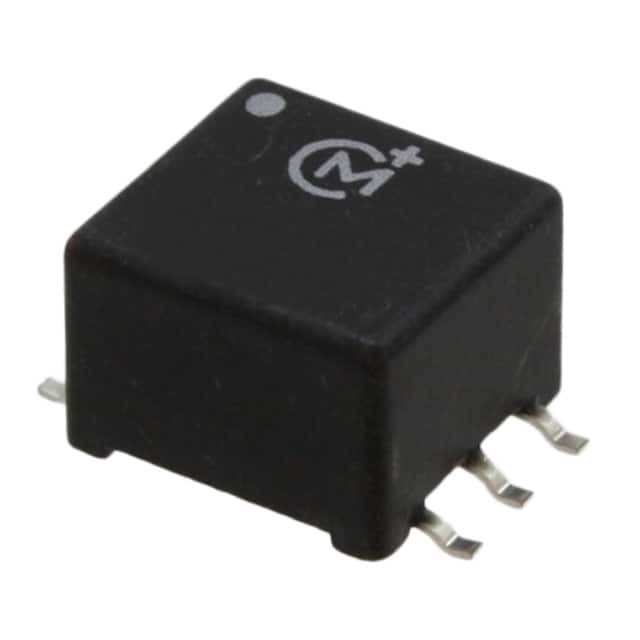

78604/9JC

SKU: 137698

Manufacturer: Murata Power Solutions

Pulse Transformer 2:1 1000Vrms 1.23Ohm Prim. DCR 72pF 6 Terminal Gull Wing SMD

220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Transformer Type	General Purpose Pulse Transformer
Maximum Interwinding Capacitance (pF)	72(Typ)
Primary Side Inductance (uH)	10000(Min)
Maximum Primary Leakage Inductance (uH)	2.3(Typ)
Maximum Secondary Leakage Inductance (uH)	2.3(Typ)
Maximum DCR Primary Side (Ohm)	1.23
High Potential	1000Vrms
Primary ET-Constant (Vus)	56
Lead Style	Gull Wing
Terminal Form	Surface Mount
Number of Terminals	6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Package Type	SMD
Packing Method	Tube
Product Weight (g)	1.1
Length (mm)	9
Depth (mm)	12.7
