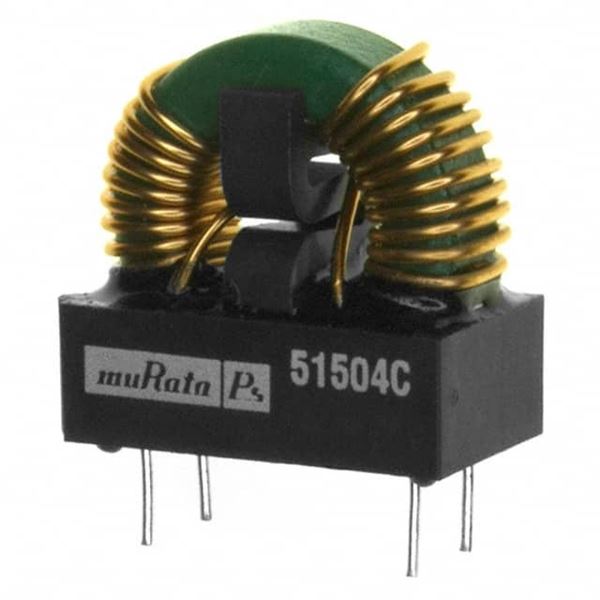

51504C Murata Power Solutions

51504C

SKU: 116259

Manufacturer: Murata Power Solutions

Common Mode Chokes Dual 500uH 4.1A 0.027Ohm DCR Thru-Hole Tray

Download sample

Request Free Samples

4490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power Line
Configuration	Dual
Number of Lines	2
Inductance (H)	500u
Leakage Inductance (H)	9u(Max)
Maximum DC Current (A)	4.1
Maximum DC Resistance (Ohm)	0.027
Withstand Voltage	1.5kVrms
Terminal Form	Through Hole
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tray
Length (mm)	21.75
Depth (mm)	10.5
