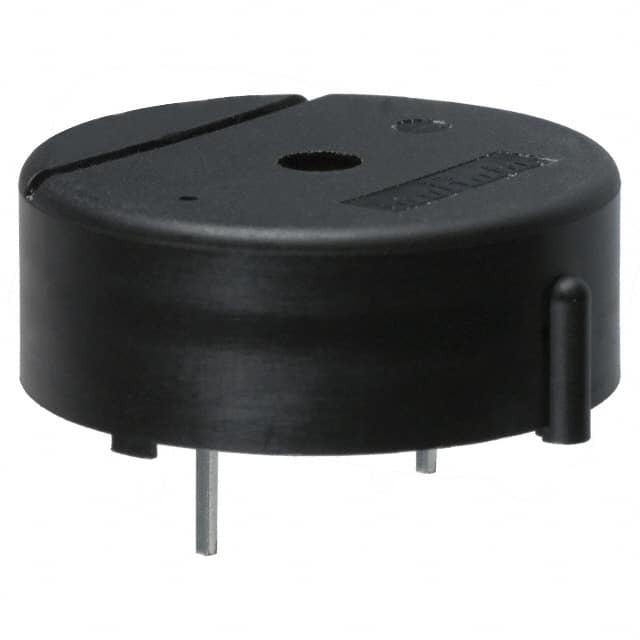

PKB24SPCH3601-B0

SKU: 84720

Manufacturer: Murata Manufacturing

Audio Buzzer Piezo 3VDC 15VDC 16mA 12VDC 90dB 3100Hz to 4100Hz Through Hole Pin Bulk

4040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8531.80.90.51
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Buzzer
Technology	Piezo
Maximum Resonant Frequency (Hz)	4100
Frequency Range (Hz)	3100 to 4100
Minimum Sound Pressure (dBA)	90dB
Tone Mode	Self Drive
Operating Supply Voltage-Min	3VDC
Typical Operating Supply Voltage	12VDC
Operating Supply Voltage-Max	15VDC
Maximum Supply Current (mA)	16
Terminal Form	Through Hole
Termination Method	Pin
Number of Terminals	2
Operating Temperature-Min	-20
Operating Temperature-Max	70
Packing Method	Bulk
Product Diameter (mm)	24.3
