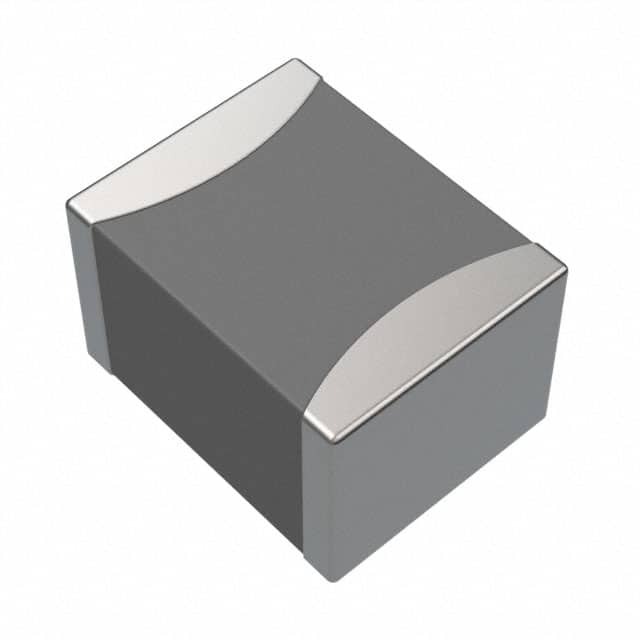

DFE322520FD-2R2M=P2

SKU: 117542

Manufacturer: Murata Manufacturing

Inductor Power Shielded Wirewound 2.2uH 20% 1MHz Metal 2.9A 0.046Ohm DCR 1210 Automotive T/R

2390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Metal
Inductance (H)	2.2u
Inductance Decrease Percentage @ Isat (%)	30
Tolerance	20%
Inductance Test Frequency (Hz)	1M
Maximum DC Current (A)	2.9
Maximum Saturation Current (A)	5
Maximum DC Resistance (Ohm)	0.046
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	3.5
Terminal Form	Surface Mount
Depth (mm)	2.8
