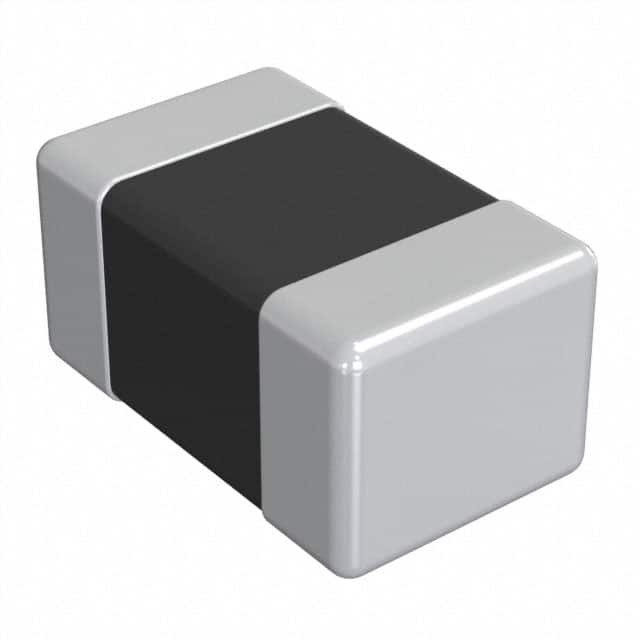

DFE201210U-1R0M=P2

SKU: 138888

Manufacturer: Murata Manufacturing

Inductor Power Shielded Wirewound 1uH 20% 1MHz Metal 2A 0.095Ohm DCR 0805 T/R

2780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Metal
Inductance (H)	1u
Tolerance	20%
Inductance Test Frequency (Hz)	1M
Maximum DC Current (A)	2
Maximum Saturation Current (A)	3.1
Maximum DC Resistance (Ohm)	0.095
Number of Terminals	2
Case Size	0805
Operating Temperature-Min	-40
Operating Temperature-Max	125
Length (mm)	2.2
Terminal Form	Surface Mount
Depth (mm)	1.4
