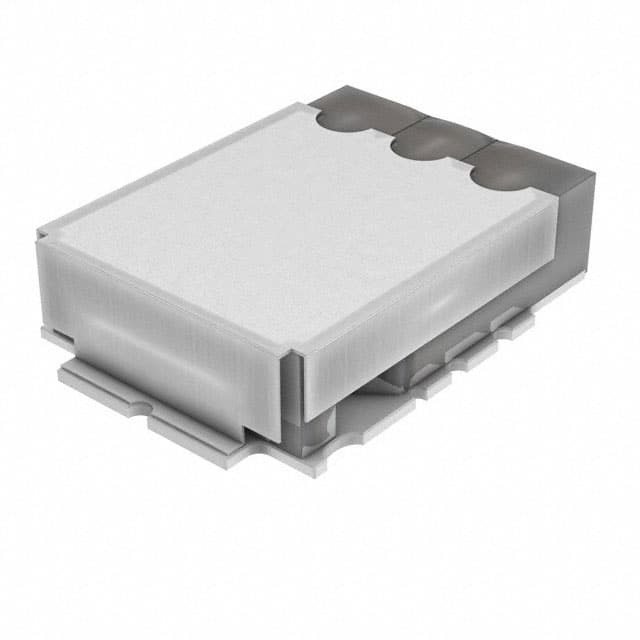

DFCH3836MHDJAA-RF1 Murata Manufacturing

DFCH3836MHDJAA-RF1

SKU: 72690

Manufacturer: Murata Manufacturing

RF Filter Band Pass 836.5MHz 824MHz to 849MHz 2.6dB 50Ohm SMD 7Pin T/R

Download sample

Request Free Samples

3950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Band Pass
Center Frequency (MHz)	836.5
Bandwidth (MHz)	824 to 849
Load Impedance	50Ohm
Maximum Insertion Loss (dB)	2.6
Maximum Pass Band Ripple (dB)	1
Maximum VSWR	2
Terminal Form	Surface Mount
Number of Terminals	7
Operating Temperature-Min	-35
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	13.5
Depth (mm)	10
