1285AS-H-1R5M=P2

SKU: 5079

Manufacturer: Murata Manufacturing

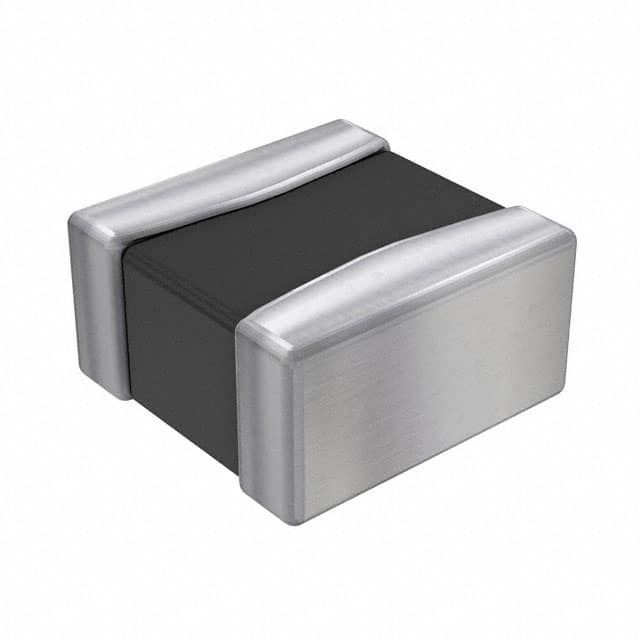

Inductor Power Shielded Wirewound 1.5uH 20% 1MHz Metal 1.6A 0.144Ohm DCR 0806 T/R

Request Free Samples

1680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Overview
Specifications
Contact Us

Murata Manufacturing 1285AS-H-1R5M=P2 is available at WIN SOURCE. Please review product page below for detailed information, including 1285AS-H-1R5M=P2 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 1285AS-H-1R5M=P2 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Metal
Inductance (H)	1.5u
Tolerance	20%
Inductance Test Frequency (Hz)	1M
Maximum DC Current (A)	1.6
Maximum Saturation Current (A)	1.8
Maximum DC Resistance (Ohm)	0.144
Number of Terminals	2
Case Size	0806
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Length (mm)	2.2
Depth (mm)	1.8
