955402881

SKU: 51213

Manufacturer: Molex

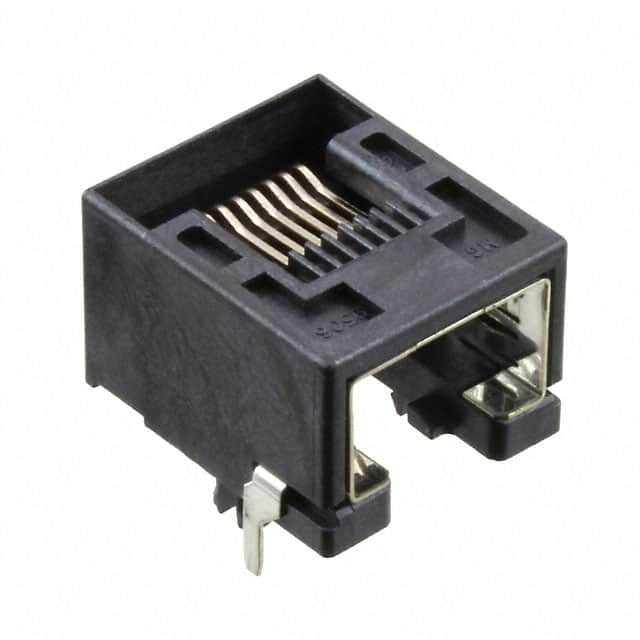

Conn RJ-45 F 8 POS 1.27mm Solder RA Thru-Hole 8 Terminal 1 Port Modular Jack 8/8, RJ45 Cat 3 Tray

2380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
Automotive	No
PPAP	No
Type	RJ-45
Gender	F
Number of Terminals	8
Number of Contacts	8
Number of Ports	1
Number of Loaded Positions	8
Category Number	Cat 3
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Right Angle
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	125VDC
Insulation Resistance (MOhm)	500
Maximum Contact Resistance (mOhm)	20
Mating Cycle (Cycles)	2500
Integrated Magnetics	No
Shell Body Material	Copper Alloy
Shell Plating	Tin
Operating Temperature-Min	-40
Shielding	Yes
Operating Temperature-Max	85
Packing Method	Tray
Product Style	Single
Product Weight (g)	2.611
Length (mm)	15.75
Depth (mm)	18.1
Height (mm)	11.5
Tradename	Modular Jack 8/8, RJ45
Spring Option	No
Tab Direction	Down
Distance Between Begs (mm)	11.43
Distance Between Shield Pins (mm)	15.24
