903270304

SKU: 79309

Manufacturer: Molex

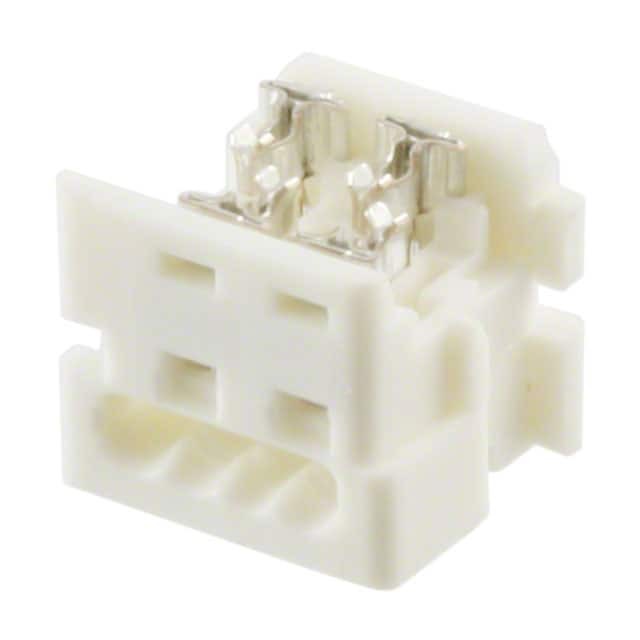

Conn IDC Connector RCP 4 POS 1.27mm IDT ST Top Entry Cable Mount Picoflex® Bag

1600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	IDC Connector
Gender	RCP
Number of Contacts	4
Number of Rows	2
Termination Method	IDT
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Current Rating-Max(A)	1.2/Contact
Voltage Rating-Max	250V
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Bag
Product Weight (g)	0.287
Length (mm)	7.59
Depth (mm)	7
Height (mm)	6.4
Tradename	Picoflex®
