901301208

SKU: 137710

Manufacturer: Molex

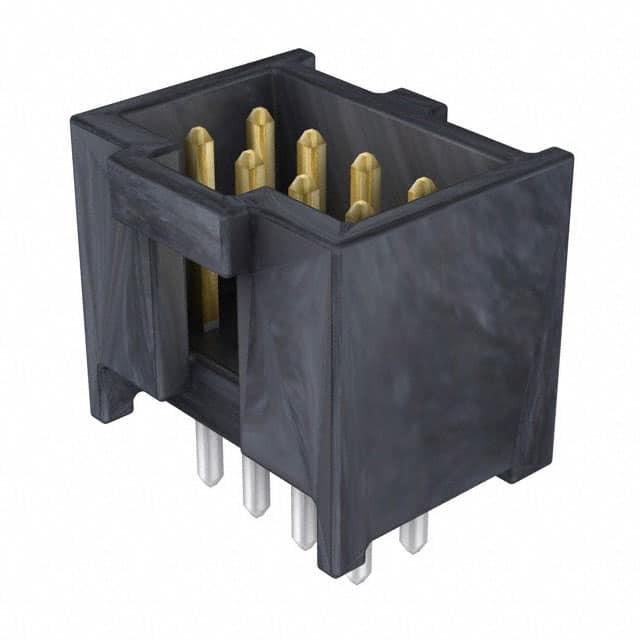

Conn Shrouded Header (4 Sides) HDR 8 POS 2.54mm Solder ST Top Entry Thru-Hole C-Grid III™ Tray

2540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	8
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Polarization Type	Center Key/Center Slot
Row Spacing (mm)	2.54
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	350VDC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	100
Packing Method	Tray
Product Weight (g)	1.089
Length (mm)	12.5
Depth (mm)	9.75
Height (mm)	10.9
Tradename	C-Grid III™
