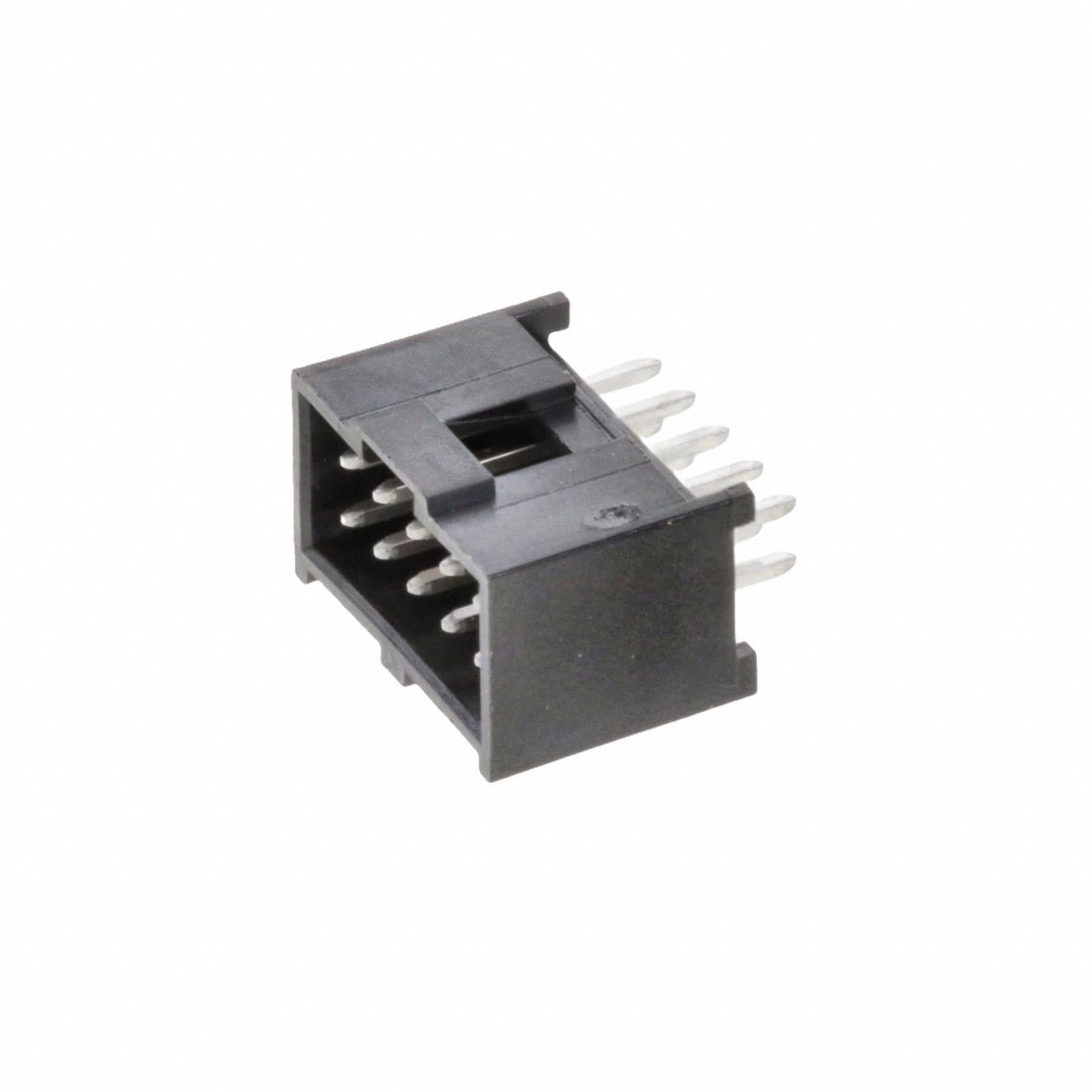

90130-1110

SKU: 44075

Manufacturer: Molex

Conn Shrouded Header (4 Sides) HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole C-Grid III™ Tray

3140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	10
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Polarization Type	Center Key
Row Spacing (mm)	2.54
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	350VDC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	30
Packing Method	Tray
Product Weight (g)	1.305
Length (mm)	15.04
Depth (mm)	9.75
Height (mm)	10.9
Tradename	C-Grid III™
Contact Plating Thickness	0.76um
Tail Length (mm)	2.9
