90120-0923

SKU: 15756

Manufacturer: Molex

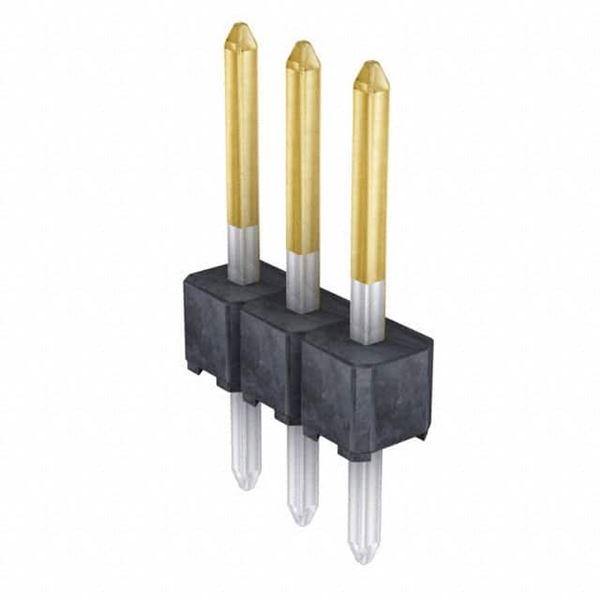

Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole C-Grid III™ Tray

1040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Unshrouded Header
Gender	HDR
Number of Contacts	3
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	350VDC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-55
Operating Temperature-Max	125
Mating Cycle (Cycles)	500
Packing Method	Tray
Product Weight (g)	0.127
Length (mm)	7.62
Depth (mm)	2.54
Height (mm)	9.25
Tradename	C-Grid III™
Tail Length (mm)	6.75
