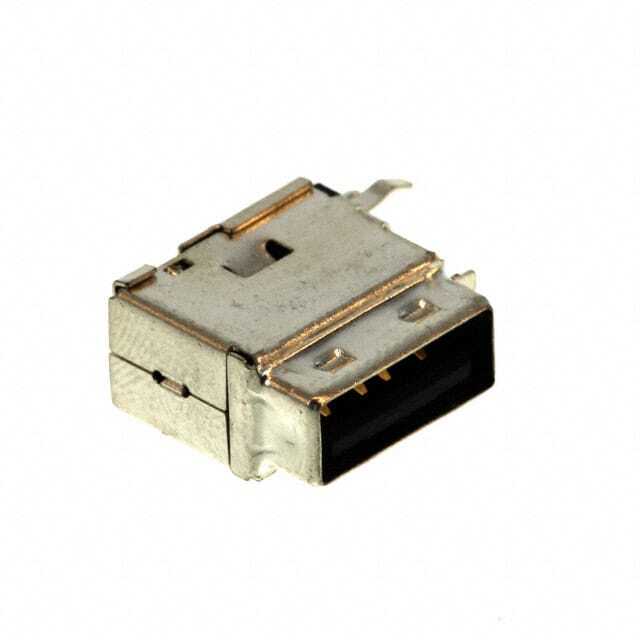

89485-8000

SKU: 144744

Manufacturer: Molex

Conn USB 2.0 Type A RCP 4 POS 1.4mm Solder RA Thru-Hole 4 Terminal 1 Port Tray

1050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	USB 2.0 Type A
Gender	RCP
Number of Terminals	4
Number of Contacts	4
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	1.4
Body Orientation	Right Angle
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	750VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	30
Mating Cycle (Cycles)	1500
Shell Body Material	Steel
Shell Plating	Tin Over Nickel
Operating Temperature-Min	0
Operating Temperature-Max	50
Packing Method	Tray
Product Weight (g)	2.26
Length (mm)	7.5
Depth (mm)	14
Height (mm)	14.45
