87832-5922

SKU: 151863

Manufacturer: Molex

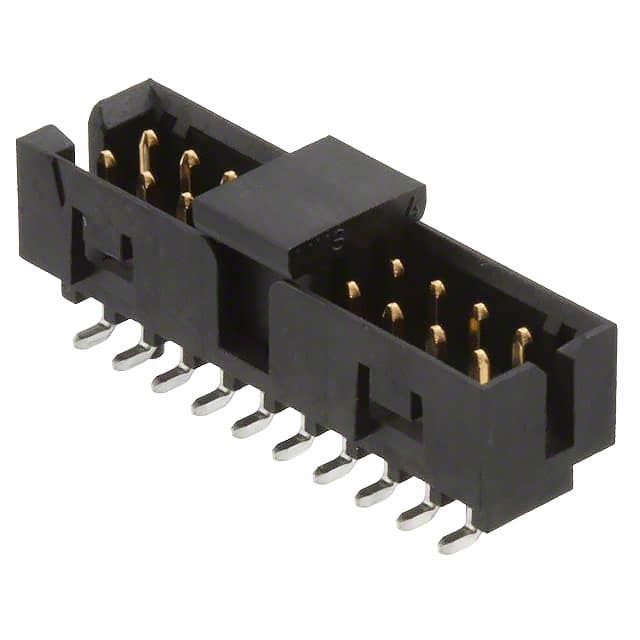

Conn Shrouded Header (4 Sides) HDR 20 POS 2mm Solder ST Top Entry SMD Milli-Grid™ T/R

930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	20
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Straight
Polarization Type	Center Slot/Dual Slot
Row Spacing (mm)	2
Current Rating-Max(A)	2/Contact
Voltage Rating-Max	125V
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	40
Operating Temperature-Min	-55
Operating Temperature-Max	105
Mating Cycle (Cycles)	100
Packing Method	Tape and Reel
Product Weight (g)	0.9
Length (mm)	22.65
Depth (mm)	6.3
Height (mm)	7.6
Tradename	Milli-Grid™
Contact Plating Thickness	0.381um
