87832-1006

SKU: 128870

Manufacturer: Molex

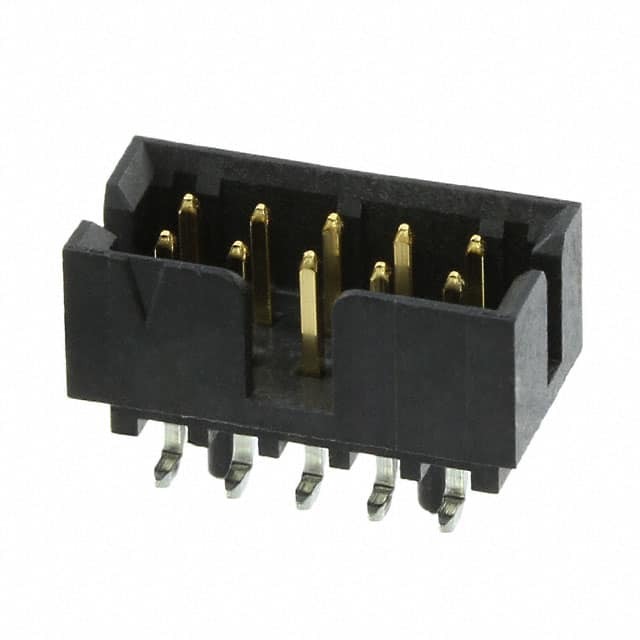

Conn Shrouded Header (4 Sides) HDR 10 POS 2mm Solder ST Top Entry SMD Milli-Grid T/R

3340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	10
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Straight
Polarization Type	Center Lock/Dual Side Slot
Row Spacing (mm)	2
Current Rating-Max(A)	2/Contact
Voltage Rating-Max	125V
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	40
Operating Temperature-Min	-55
Operating Temperature-Max	105
Mating Cycle (Cycles)	100
Packing Method	Tape and Reel
Product Weight (g)	0.467
Length (mm)	12.65
Depth (mm)	6.3
Height (mm)	7.6
Tradename	Milli-Grid
Contact Plating Thickness	(0.38/1.27)um
