87715-9306

SKU: 123483

Manufacturer: Molex

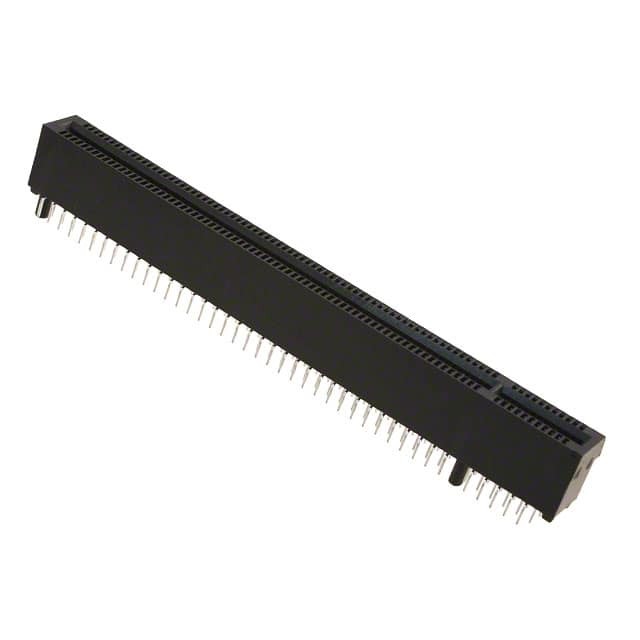

Conn PCI Express Card Edge SKT 164 POS 2mm Solder ST Thru-Hole PCI Express Tray

800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	PCI Express Card Edge
Gender	SKT
Card Type	PCI
Card Thickness (mm)	1.57
Number of Contacts	164
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Straight
Current Rating-Max(A)	1.1/Contact
Voltage Rating-Max	50VDC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-55
Operating Temperature-Max	85
Mating Cycle (Cycles)	50
Packing Method	Tray
Product Weight (g)	8.5
Length (mm)	89
Depth (mm)	8.85
Height (mm)	11.25
Tail Cross Section (mm)	0.25x0.34
Tail Length (mm)	2.54
Tradename	PCI Express
