87437-0673

SKU: 6689

Manufacturer: Molex

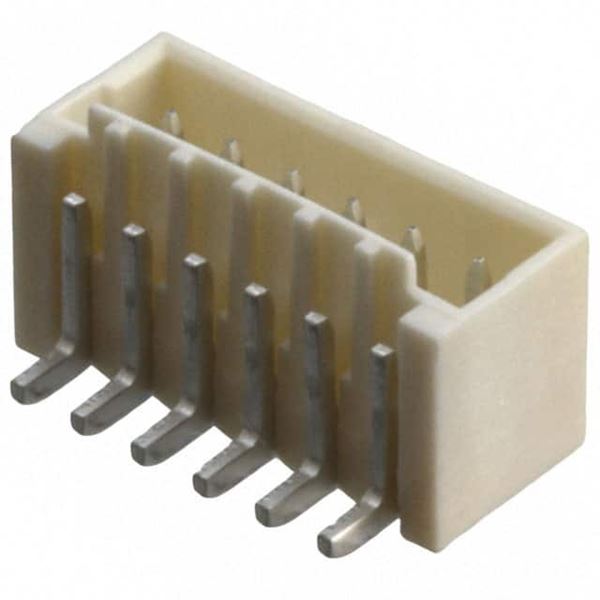

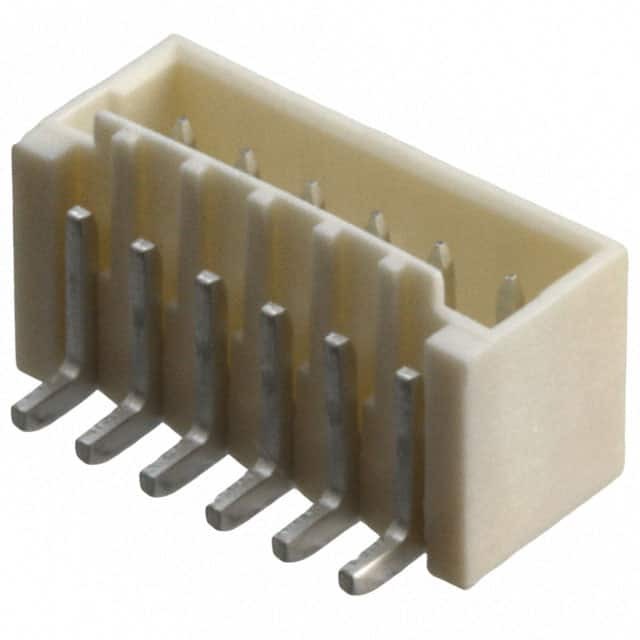

Conn Shrouded Header (4 Sides) HDR 6 POS 1.5mm Solder ST SMD T/R

1200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	6
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	1.5
Body Orientation	Straight
Current Rating-Max(A)	2.5/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	40
Operating Temperature-Min	-55
Operating Temperature-Max	105
Mating Cycle (Cycles)	10
Packing Method	Tape and Reel
Length (mm)	10.3
Depth (mm)	4.45
Height (mm)	5.75
