855135001

SKU: 72309

Manufacturer: Molex

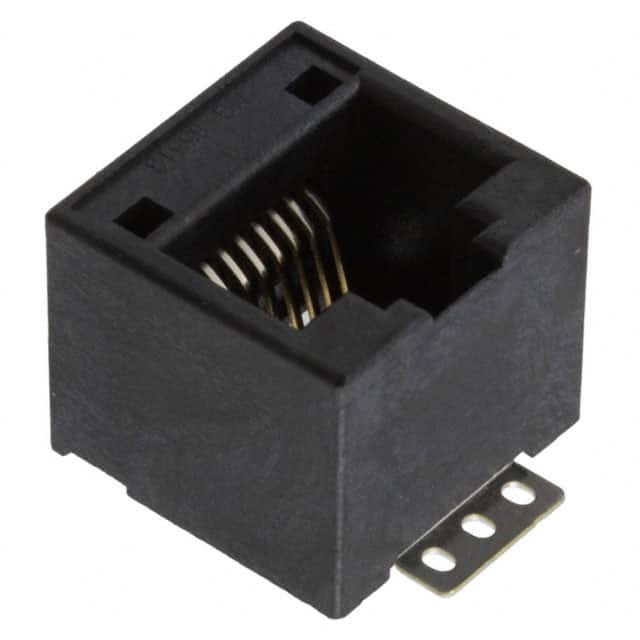

Conn RJ-45 F 8 POS 1.27mm Solder ST SMD 8 Terminal 1 Port Cat 3 T/R

1950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
SVHC	Yes
Automotive	No
PPAP	No
Type	RJ-45
Gender	F
Number of Terminals	8
Number of Contacts	8
Number of Ports	1
Number of Loaded Positions	8
Category Number	Cat 3
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	125VDC
Maximum Contact Resistance (mOhm)	20
Mating Cycle (Cycles)	2500
Integrated Magnetics	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Product Style	Single
Product Weight (g)	2.879
Length (mm)	15.24
Depth (mm)	15.08
Height (mm)	12.7
