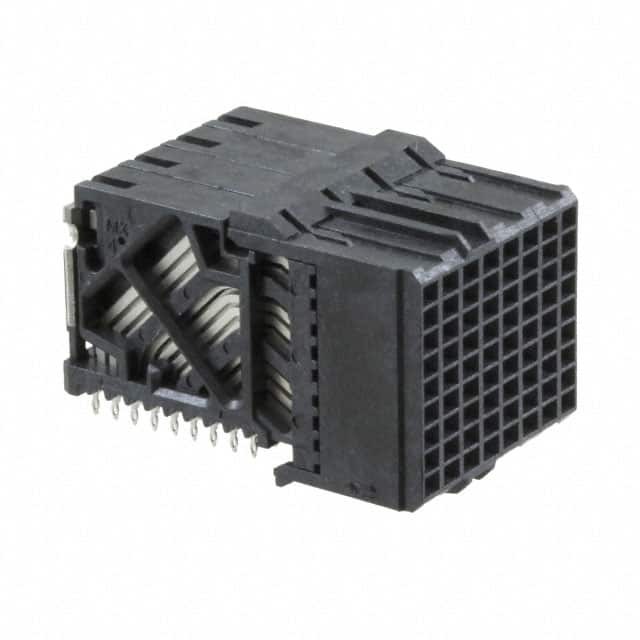

76170-1038

SKU: 8656

Manufacturer: Molex

Conn Daughter Card RCP 72 POS 1.9mm Press Fit RA Thru-Hole Impact™ Tray

1410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Daughter Card
Gender	RCP
Number of Contacts	72
Termination Method	Press Fit
Terminal Pitch (mm)	1.9
Body Orientation	Right Angle
Speed Rating (Gbps)	25
Current Rating-Max(A)	0.75/Contact
Voltage Rating-Max	30VDC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-55
Operating Temperature-Max	85
Mating Cycle (Cycles)	200
Packing Method	Tray
Product Weight (g)	6.113
Length (mm)	15.2
Depth (mm)	24.11
Height (mm)	15.4
Tradename	Impact™
