75783-0140

SKU: 100543

Manufacturer: Molex

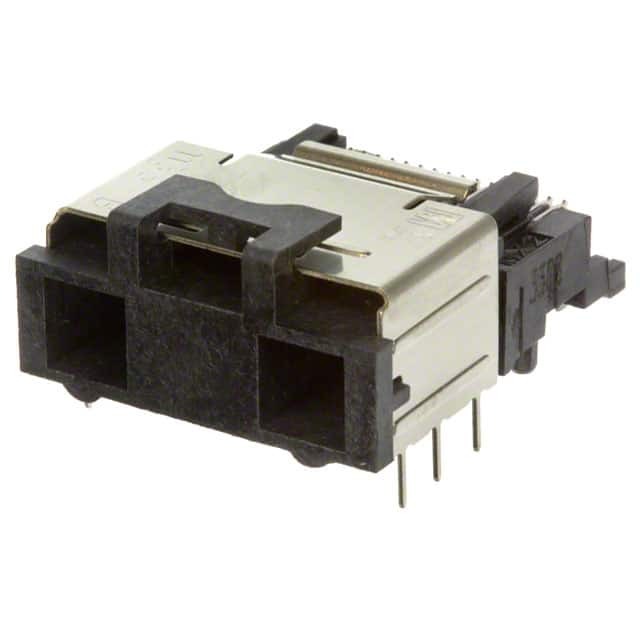

Conn I-Pass RCP 36 POS 0.8mm Solder RA SMD 36 Terminal 1 Port iPass™ T/R

2800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8544.49.90.00
Automotive	No
PPAP	No
Type	I-Pass
Gender	RCP
Number of Terminals	36
Number of Contacts	36
Number of Ports	1
Number of Loaded Positions	36
Termination Method	Solder
Terminal Pitch (mm)	0.8
Body Orientation	Right Angle
Current Rating-Max(A)	0.5/Contact
Voltage Rating-Max	30VAC
Maximum Contact Resistance (mOhm)	30
Mating Cycle (Cycles)	50
Integrated Magnetics	No
Shell Body Material	Nickel Silver
Operating Temperature-Min	-40
Operating Temperature-Max	80
Packing Method	Tape and Reel
Product Style	Single
Product Weight (g)	3.017
Length (mm)	19.5
Depth (mm)	24.07
Height (mm)	8.47
Tradename	iPass™
