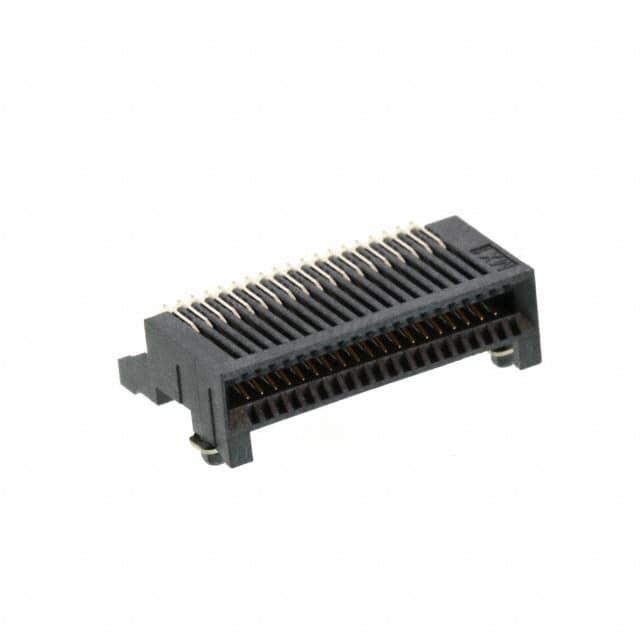

755860104

SKU: 123474

Manufacturer: Molex

Conn I-Pass F 38 POS 0.8mm Solder RA SMD 38 Terminal 1 Port T/R

3520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Type	I-Pass
Gender	F
Number of Terminals	38
Number of Contacts	38
Number of Ports	1
Number of Loaded Positions	38
Termination Method	Solder
Terminal Pitch (mm)	0.8
Body Orientation	Right Angle
Current Rating-Max(A)	0.5/Contact
Voltage Rating-Max	30VDC
Maximum Contact Resistance (mOhm)	10
Mating Cycle (Cycles)	250
Operating Temperature-Min	-40
Operating Temperature-Max	80
Packing Method	Tape and Reel
Product Style	Single
Length (mm)	18.2
Depth (mm)	11.5
Height (mm)	5.35
