716612540 Molex

716612540

SKU: 58264

Manufacturer: Molex

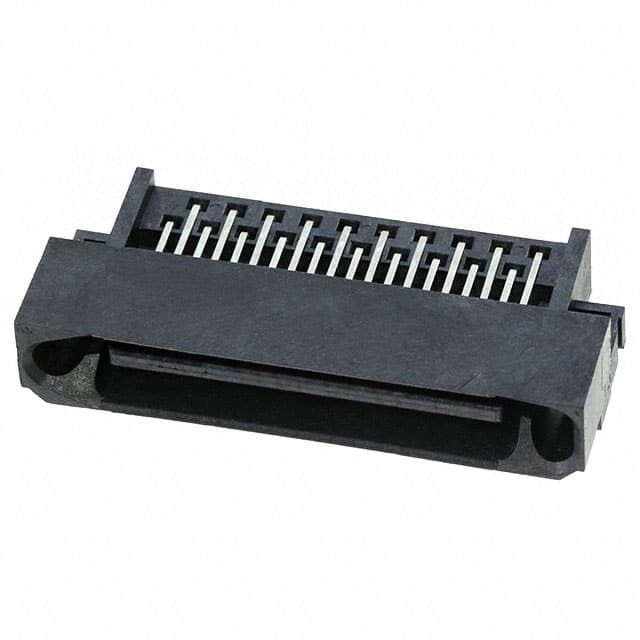

Conn EBBI PL 40 POS 2.54mm Solder RA Thru-Hole 40 Terminal 1 Port EBBI™ Tray

Request Free Samples

570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	EBBI
Gender	PL
Number of Terminals	40
Number of Contacts	40
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Right Angle
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	30V
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	2000
Packing Method	Tray
Product Weight (g)	7.694
Length (mm)	36.8
Depth (mm)	17.45
Height (mm)	7.5
Tradename	EBBI™
Terminal Form	Through Hole
Contact Plating	Gold Over Nickel
