71439-0464

SKU: 38590

Manufacturer: Molex

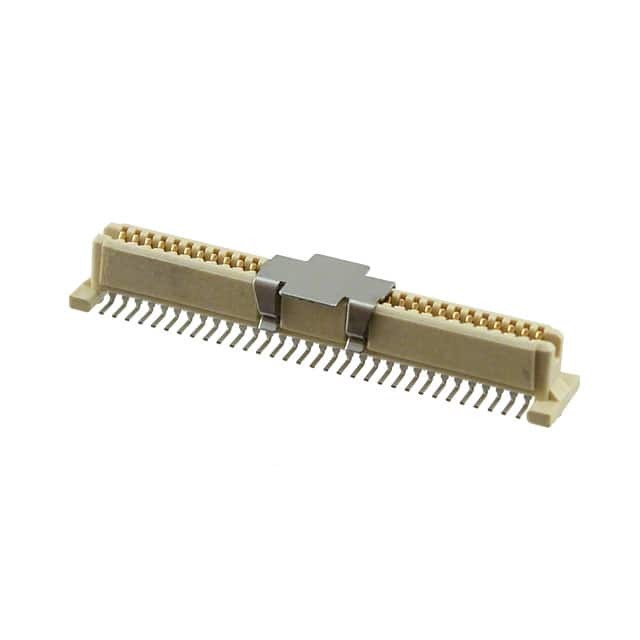

Conn Mezzanine RCP 64 POS 1mm Solder ST Top Entry SMD Mezzanine T/R

650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Mezzanine
Gender	RCP
Number of Contacts	64
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1
Body Orientation	Straight
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	100V
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	30
Operating Temperature-Min	-55
Operating Temperature-Max	85
Mating Cycle (Cycles)	100
Packing Method	Tape and Reel
Product Weight (g)	1.14
Length (mm)	35.9
Depth (mm)	6.1
Height (mm)	5.3
Tradename	Mezzanine
