70247-2051 Molex

70247-2051

SKU: 157306

Manufacturer: Molex

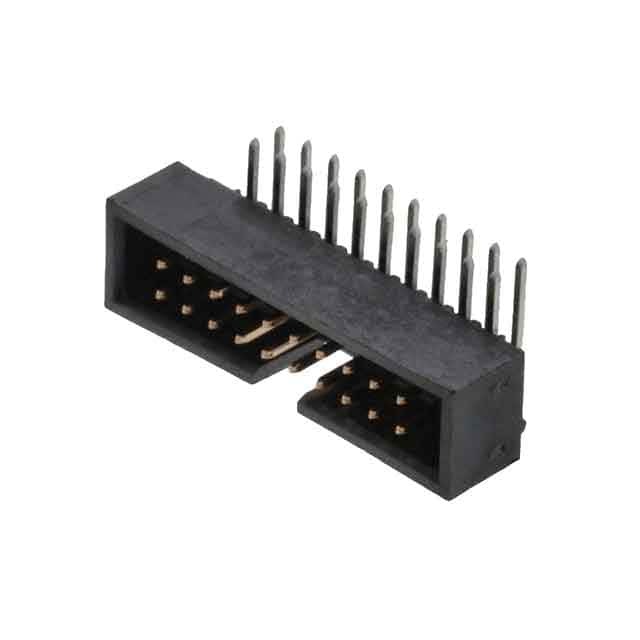

Conn Shrouded Header (4 Sides) HDR 20 POS 2.54mm Solder RA Side Entry Thru-Hole C-Grid® Tray

Request Free Samples

1530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	20
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Right Angle
Polarization Type	Center Slot
Row Spacing (mm)	2.54
Current Rating-Max(A)	2.5/Contact
Voltage Rating-Max	250VDC
Operating Temperature-Min	-55
Operating Temperature-Max	120
Mating Cycle (Cycles)	50
Packing Method	Tray
Product Weight (g)	2.869
Length (mm)	33.02
Depth (mm)	12.13
Height (mm)	8.89
Tradename	C-Grid®
Tail Length (mm)	3.05
