559350510

SKU: 123397

Manufacturer: Molex

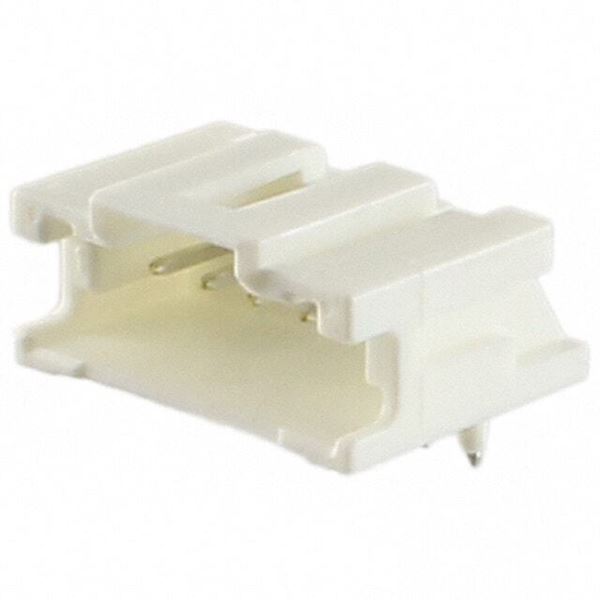

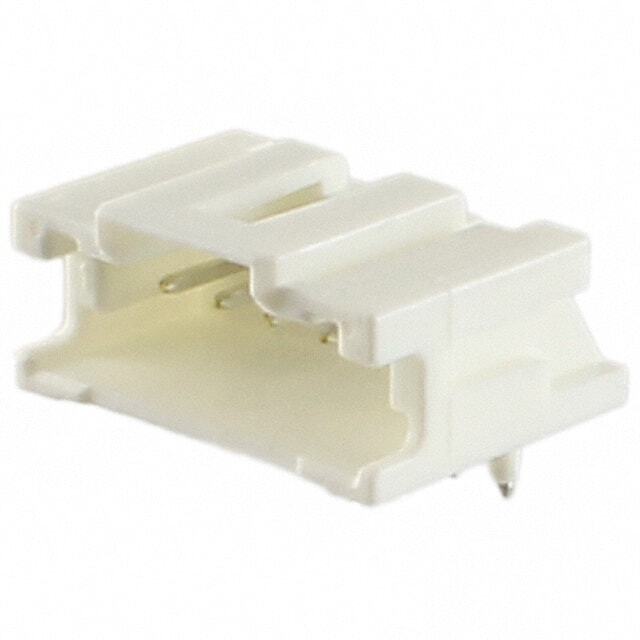

Conn Shrouded Header (4 Sides) PL 5 POS 2mm Solder RA Side Entry Thru-Hole MicroClasp™ Tray

1730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	PL
Number of Contacts	5
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Right Angle
Polarization Type	Center Slot
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	250VDC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Tray
Product Weight (g)	0.6046
Length (mm)	14
Depth (mm)	11.75
Height (mm)	6.7
Tradename	MicroClasp™
Tail Length (mm)	3.2
