559171210

SKU: 36961

Manufacturer: Molex

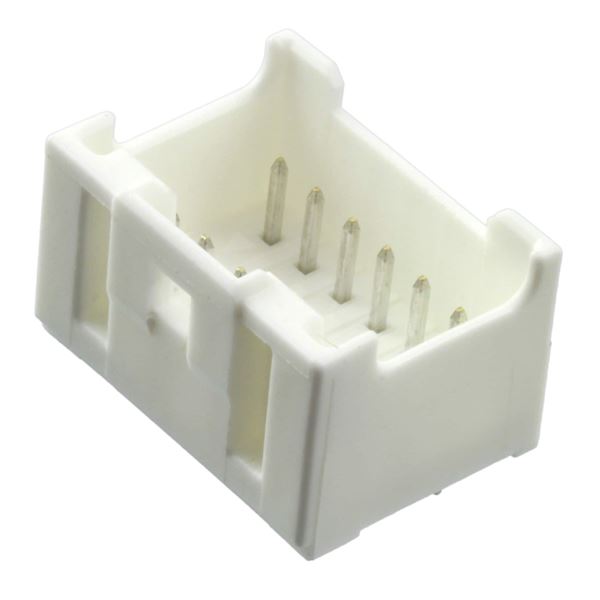

Conn Shrouded Header (4 Sides) HDR 12 POS 2mm Solder ST Thru-Hole MicroClasp™ Tray

1750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	12
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Straight
Row Spacing (mm)	5
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	250VAC
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Tray
Product Weight (g)	1.0383
Length (mm)	15.4
Depth (mm)	11.5
Height (mm)	9.75
Tradename	MicroClasp™
