559090974

SKU: 80860

Manufacturer: Molex

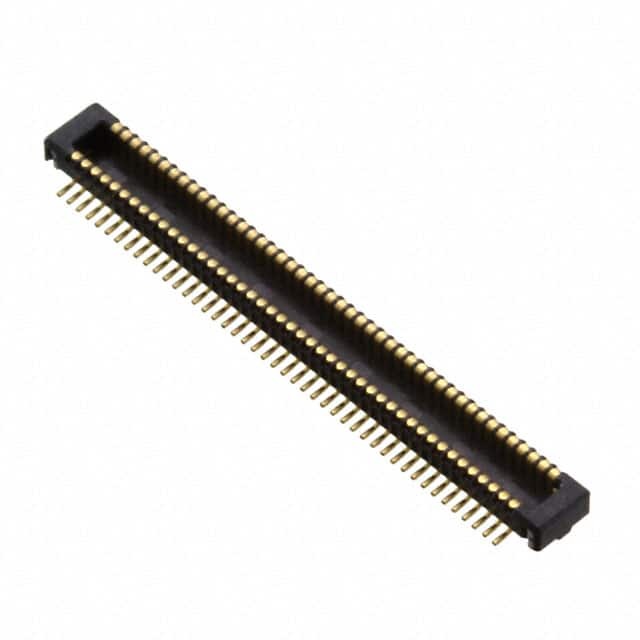

Conn Board to Board PL 90 POS 0.4mm Solder ST SMD SlimStack™ T/R

1680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Board to Board
Gender	PL
Number of Contacts	90
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.4
Body Orientation	Straight
Current Rating-Max(A)	0.3/Contact
Voltage Rating-Max	50VDC
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	40
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Tape and Reel
Product Weight (g)	0.07607
Length (mm)	20
Depth (mm)	2.13
Height (mm)	1.2
Tradename	SlimStack™
