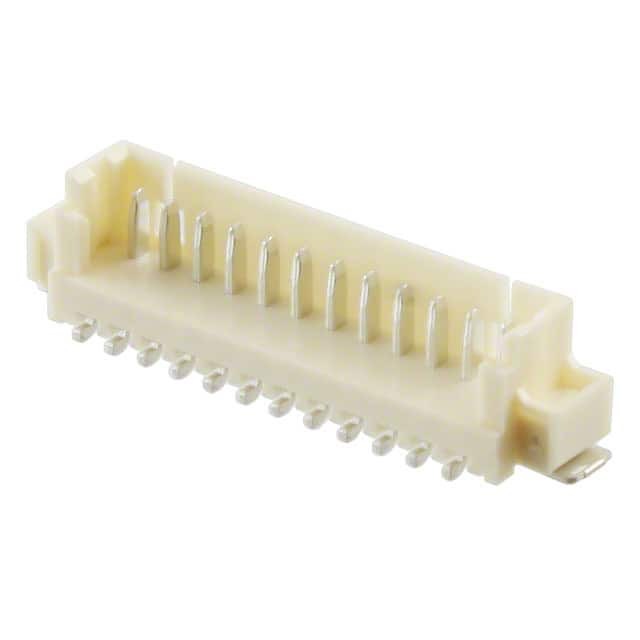

533981271

SKU: 87966

Manufacturer: Molex

Conn Shrouded Header (3 Sides) HDR 12 POS 1.25mm Solder ST SMD PicoBlade™ T/R

2160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Shrouded Header (3 Sides)
Gender	HDR
Number of Contacts	12
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	1.25
Body Orientation	Straight
Polarization Type	Dual Slot
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	125V
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Tape and Reel
Product Weight (g)	0.865
Length (mm)	20.15
Depth (mm)	4.2
Height (mm)	4.7
Tradename	PicoBlade™
