52901-1474

SKU: 114667

Manufacturer: Molex

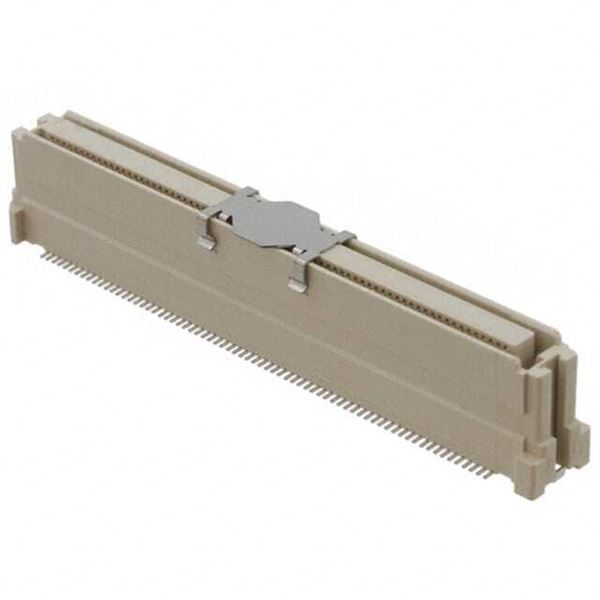

Conn Board to Board RCP 140 POS 0.635mm Solder ST SMD SlimStack™ T/R

1310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Board to Board
Gender	RCP
Number of Contacts	140
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.635
Body Orientation	Straight
Current Rating-Max(A)	0.5/Contact
Voltage Rating-Max	100V
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	70
Operating Temperature-Min	-55
Operating Temperature-Max	105
Mating Cycle (Cycles)	50
Packing Method	Tape and Reel
Product Weight (g)	3.017332
Length (mm)	52.32
Depth (mm)	6.2
Height (mm)	10
Tradename	SlimStack™
