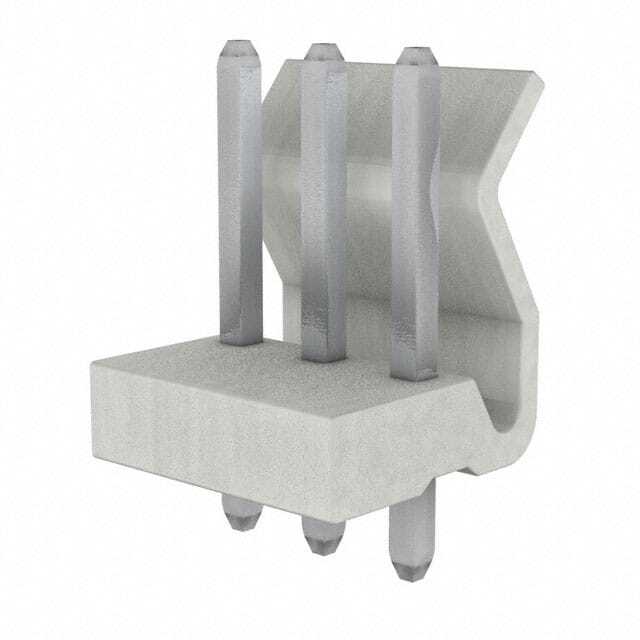

5273-03A

SKU: 109124

Manufacturer: Molex

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Top Entry Thru-Hole SPOX™ Bag

900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	3
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	3.96
Body Orientation	Straight
Current Rating-Max(A)	7/Contact
Voltage Rating-Max	250V
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Bag
Product Weight (g)	1.0128
Length (mm)	11.12
Depth (mm)	10.75
Height (mm)	13.85
Tradename	SPOX™
Contact Plating Thickness	5.08um
Tail Length (mm)	3.6
