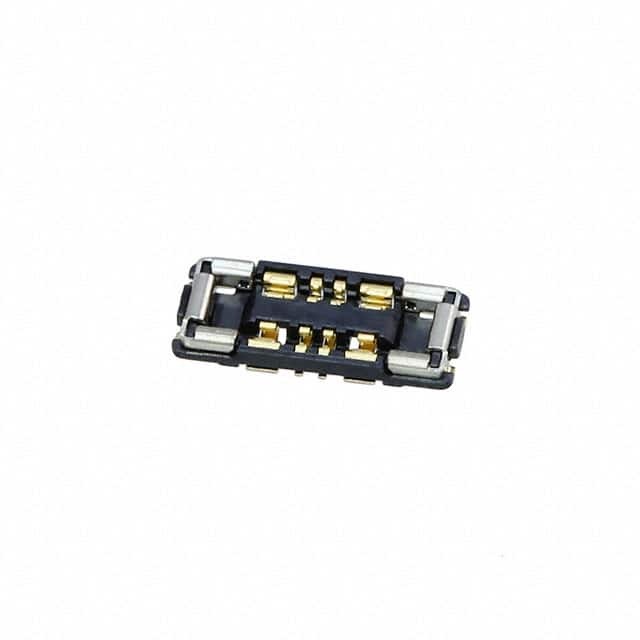

5054730810 Molex

5054730810

SKU: 31399

Manufacturer: Molex

Conn Board to Board RCP 4Power/4Signal POS 0.4mm Solder ST SMD T/R

Request Free Samples

2680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Board to Board
Gender	RCP
Number of Contacts	4Power/4Signal
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.4
Body Orientation	Straight
Current Rating-Max(A)	5/Contact
Voltage Rating-Max	50VDC
Operating Temperature-Min	-40
Operating Temperature-Max	85
Mating Cycle (Cycles)	10
Packing Method	Tape and Reel
Length (mm)	4.8
Depth (mm)	2
Height (mm)	0.58
