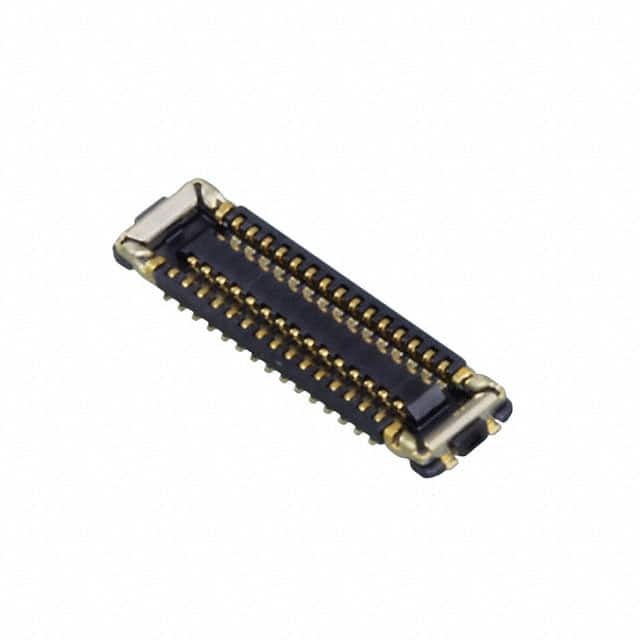

505066-3020

SKU: 130484

Manufacturer: Molex

Conn Board to Board RCP 30 POS 0.35mm Solder ST SMD SlimStack™ T/R

490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Board to Board
Gender	RCP
Number of Contacts	30
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.35
Body Orientation	Straight
Row Spacing (mm)	0.68
Current Rating-Max(A)	0.3/Contact
Voltage Rating-Max	50VDC
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	80
Operating Temperature-Min	-40
Operating Temperature-Max	85
Mating Cycle (Cycles)	30
Packing Method	Tape and Reel
Product Weight (g)	0.013412
Length (mm)	7.7
Depth (mm)	2
Height (mm)	0.58
Tradename	SlimStack™
