504622-3010 Molex

504622-3010

SKU: 130483

Manufacturer: Molex

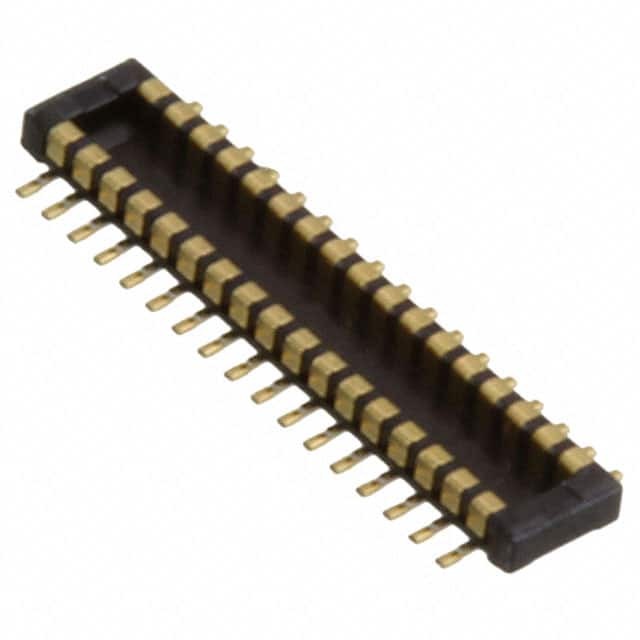

Conn Board to Board PL 30 POS 0.35mm Solder ST SMD SlimStack™ T/R

Download sample

Request Free Samples

770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Board to Board
Gender	PL
Number of Contacts	30
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	0.35
Body Orientation	Straight
Current Rating-Max(A)	0.3/Contact
Voltage Rating-Max	50VAC
Operating Temperature-Min	-40
Operating Temperature-Max	85
Mating Cycle (Cycles)	30
Packing Method	Tape and Reel
Product Weight (g)	0.00792
Length (mm)	6.54
Depth (mm)	2
Height (mm)	0.48
Tradename	SlimStack™
