5024380000

SKU: 17325

Manufacturer: Molex

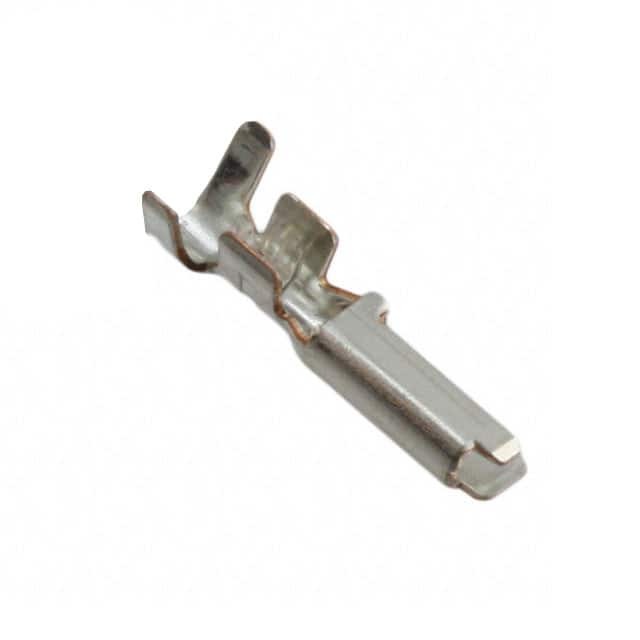

Contact M Crimp ST Cable Mount 22-26AWG CLIK-Mate™ Reel

2730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8538.90.81.80
Automotive	No
PPAP	No
Connector Type	Connector Headers and PCB Receptacles
Contact Type	Signal
Gender	M
Termination Method	Crimp
Body Orientation	Straight
Current Rating-Max(A)	3
Voltage Rating-Max	250VDC
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Reel
Product Weight (g)	41.5m
Length (mm)	7.55
Depth (mm)	2.43
Height (mm)	2.08
Tradename	CLIK-Mate™
Wire Size (AWG)	22-26
