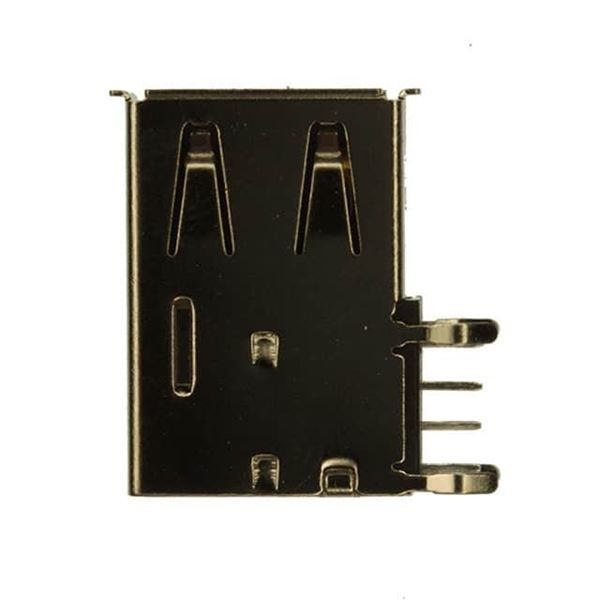

48204-0001

SKU: 130469

Manufacturer: Molex

Conn USB 2.0 Type A RCP 4 POS 2mm Solder RA Thru-Hole 4 Terminal 1 Port Tray

1010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	USB 2.0 Type A
Gender	RCP
Number of Terminals	4
Number of Contacts	4
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Right Angle
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	30VDC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	30
Shell Body Material	Brass
Shell Plating	Nickel Over Copper
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Length (mm)	7.2
Depth (mm)	19.25
