474911001 Molex

474911001

SKU: 137588

Manufacturer: Molex

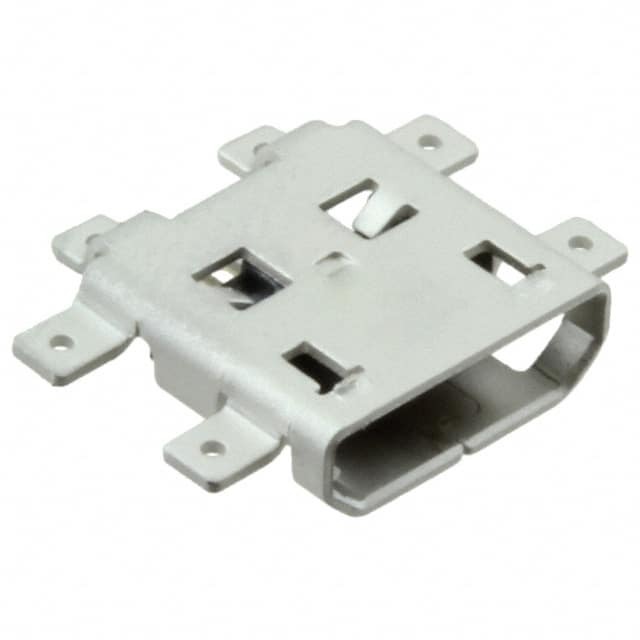

Conn Micro USB 2.0 Type B RCP 5 POS 0.65mm Solder RA SMD 5 Terminal 1 Port T/R

Download sample

Request Free Samples

2490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Micro USB 2.0 Type B
Gender	RCP
Number of Terminals	5
Number of Contacts	5
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	0.65
Body Orientation	Right Angle
Current Rating-Max(A)	(1.8/1)/Contact
Voltage Rating-Max	30VAC
Mating Cycle (Cycles)	10000
Shell Body Material	Stainless Steel
Shell Plating	Tin Over Nickel
Operating Temperature-Min	-30
Operating Temperature-Max	85
Packing Method	Tape and Reel
Product Weight (g)	0.261
Length (mm)	11
Depth (mm)	6.9
