45984-0007

SKU: 65230

Manufacturer: Molex

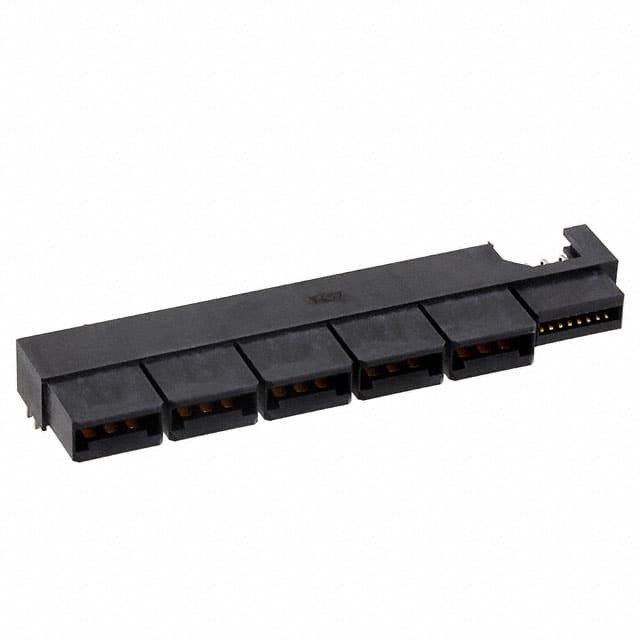

Conn Wire to Board SKT 10Power/16Signal POS 2.5mm/1.27mm Solder RA Side Entry Thru-Hole EXTreme LPHPower™ Tray

2400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Wire to Board
Gender	RCP
Number of Contacts	10Power/16Signal
Number of Rows	2/4
Termination Method	Solder
Terminal Pitch (mm)	1.27/2.5
Body Orientation	Right Angle
Row Spacing (mm)	2.5/1.27
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	250VAC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	0.75/15
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	250
Packing Method	Tray
Product Weight (g)	13.969
Length (mm)	75.3
Depth (mm)	18.6
Height (mm)	7.49
Tradename	EXTreme LPHPower™
Contact Plating Thickness	(0.76/1.27)um
Tail Length (mm)	3.6
